The Engineered Barrier for Modern Cold Chain Integrity

In an era demanding precise temperature control from pharmaceutical logistics to global food distribution, the technology behind cold room panels has evolved into a critical engineering discipline. These are not mere partitions but precision-manufactured insulated envelope systems designed to form an absolute barrier against thermal transfer and moisture ingress. The quality of these cold room sandwich panel systems directly dictates energy efficiency, operational cost, and product safety. ZHUOZHU, as a global manufacturer with extensive expertise in PIR cold room panels, provides this definitive guide to selecting and implementing high-performance panel systems for your coolroom panels and freezer applications.

Part 1: Core Technology & Anatomy of High-Performance Cold Room Panels

1.1 The Engineered Composite Structure

A superior cold room panel is a multi-functional composite where every layer is optimized for performance in a temperature-controlled environment.

Advanced Panel Construction:

• Exterior & Interior Facings: Typically pre-coated galvanized steel with durable finishes (PE, PVDF) for corrosion resistance and cleanability. For hygienic-critical areas, stainless steel or specialized coatings are used on the interior to facilitate sanitation of cool room walls.

• Core Insulation – The PIR Standard: The heart of thermal performance is a rigid Polyisocyanurate (PIR) foam core. Chosen for its exceptional balance of low thermal conductivity (0.018 W/m·K), superior long-term R-value retention, and inherent fire-resistant properties, PIR is the definitive material for modern cold room insulation panels.

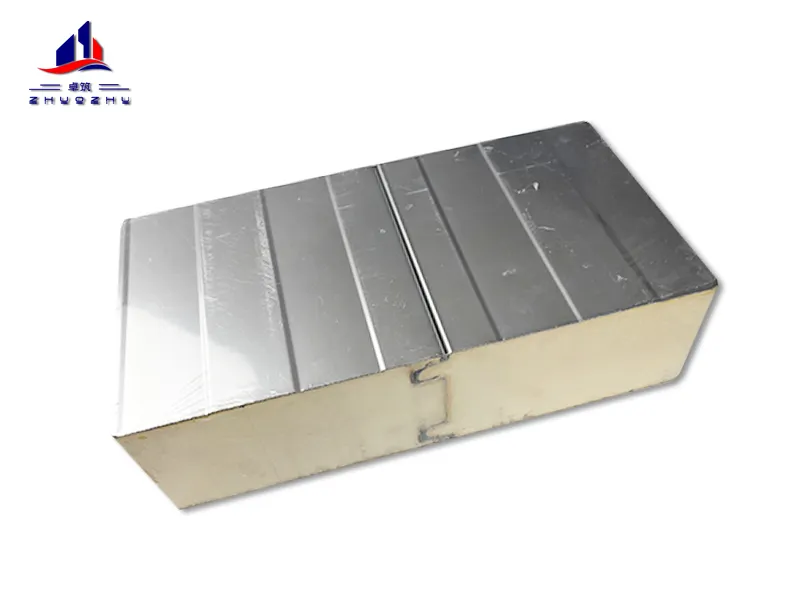

• Advanced Edge & Joint Design: The weakest point in any panel system is the joint. High-quality cold room sandwich panel systems feature thermally broken tongue-and-groove joints, often with integrated EPDM or silicone gaskets. This design combats thermal bridging and ensures an airtight seal, which is non-negotiable for maintaining consistent internal temperatures and preventing condensation within coolroom walls.

Critical Performance Specifications for Selection

2.1 Thermal Performance: Calculating Efficiency with PIR Cores

Selecting the correct panel thickness is a calculated decision based on thermodynamics, not estimation. The required thickness depends on the internal design temperature, external climate conditions, and the target U-value for energy efficiency.

PIR Panel Thickness Guidelines:

• Chill Rooms / Process Cooling (+2°C to +10°C): 80mm to 120mm PIR core.

• Standard Freezer Warehouses (-18°C to -25°C): 150mm to 200mm PIR core.

• Blast Freezers / Ultra-Low Temp (< -30°C): 200mm+ PIR core, potentially in a dual-layer configuration.

ZHUOZHU’s Engineering Support: We provide thermal modeling to demonstrate how investing in optimal PIR cold room panels thickness translates into direct, long-term operational savings by minimizing refrigeration load.

2.2 Hygienic & Structural Design Integration

For food, pharma, and high-traffic logistics, panel specifications extend beyond basic insulation.

Key Features for Demanding Applications:

• Hygienic Interior Surfaces: Smooth, non-porous, and chemically resistant finishes that withstand aggressive cleaning protocols, essential for coolroom panels in food processing.

• Structural Integrity: Cold room panels must be engineered to handle unique loads:

  • Negative Pressure: From rapid pull-down cycles or door operation.

  • Impact Resistance: Reinforced options for areas prone to contact from handling equipment.

  • Fixture Support: Ability to support mounted evaporators, shelving, or conveyor systems.

Part 3: The ZHUOZHU PIR Cold Room Panel System Advantage

We deliver complete, integrated solutions, understanding that panels are one component of a high-performing whole.

3.1 Seamless System Integration

Our cold room sandwich panel systems are designed for holistic performance:

• Vapor Barrier Continuity: Panel joints and floor/wall transitions are engineered to integrate seamlessly with the primary vapor barrier, forming a continuous moisture shield—a critical aspect often detailed separately but essential for cold room insulation panels longevity.

• Door & Airlock Compatibility: Panels are designed to interface perfectly with high-speed doors and airlock systems, ensuring the thermal envelope remains unbroken at its most vulnerable points.

• Refrigeration System Synergy: Design includes considerations for evaporator mounting, drain line routing, and sensor placement, ensuring the building envelope and mechanical systems work in concert.

Part 4: Ensuring Long-Term Performance: From Installation to Operation

4.1 Precision Installation Protocol

The best PIR cold room panels underperform if installed incorrectly. Key methodology includes:

1. Foundation-First Approach: Installing the insulated floor and vapor barrier before erecting cool room walls.

2. Sequenced Assembly: Following a engineered sequence to maintain structural stability and alignment.

3. Sealant Integrity: Meticulous application of primary gaskets and secondary sealants at all joints and penetrations.

4.2 Commissioning & Lifecycle Management

Verification and maintenance safeguard your investment:

• Performance Verification: Utilizing thermographic (IR) surveys once operational to identify any thermal bridges or insulation gaps invisible to the naked eye.

• Preventive Maintenance: Regular inspection of door seals, panel surfaces, and joint integrity to prevent minor issues from escalating into major energy losses or failures.

Conclusion: The Strategic Foundation of Efficient Cold Storage

Choosing the right cold room panel system is a foundational capital decision with decades-long implications for operational cost, energy consumption, and product integrity. In this context, PIR cold room panels represent the industry benchmark, offering the optimal balance of thermal efficiency, fire safety, and durability.

ZHUOZHU’s engineered approach ensures that every cold room sandwich panel is part of a coherent, high-performance envelope system. From the PIR core’s exceptional insulating properties to the advanced joint design that seals coolroom walls, our focus is on delivering not just a product, but guaranteed thermal performance and long-term reliability for the most critical links in your cold chain.
