Rockwool Cleanroom Panels
- Overall Thickness (mm): 50, 75, 100, 150, 200
- Standard Width (mm): 950, 1150
- Maximum Length: ≤ 12m
- Steel Skin (mm): 0.3, 0.35, 0.45, 0.50, 0.55
- Galvanized Frame (mm): 0.7, customizable
- Core Material: Rockwool
- Protective Film (mm): 0.06, customizable with logos, etc.
- Connection Type: I-Beam
The rock wool cleanroom panel primarily uses rock wool (also known as mineral wool or stone wool) as its core material. This product contains no asbestos, complying with the strict restrictions or bans on asbestos enforced in most countries worldwide. ZHUOZHU can provide customers with an official asbestos‑free certificate, ensuring the material is safe and compliant.
Rockwool Cleanroom Panels
- Overall Thickness (mm): 50, 75, 100, 150, 200
- Standard Width (mm): 950, 1150
- Maximum Length (mm): ≤ 10,000
- Steel Skin (mm): 0.45, 0.50, 0.55
- Galvanized Frame (mm): 0.7, customizable
- Core Material: Rockwool
- 0.06, customizable with logos, etc.
- Connection Type: I-Beam
CHINA'S LEADING ROCK WOOL CLEANROOM BOARD MANUFACTURER
ZHUOZHU, as a leading Chinese manufacturer of rock wool cleanroom panels, provides global customers with high-quality products that meet international standards through advanced production processes and a strict quality management system. Our rock wool cleanroom panels have obtained ISO 14644, GB/T 25975, and EU A1-grade non-combustible certifications, offering excellent fire performance (A1-grade non-combustible), thermal insulation (thermal conductivity of 0.032–0.040 W/m·K), and sound absorption (NRC up to 0.95). Currently, our products are exported to over 30 countries and regions worldwide, providing customized cleanroom solutions for industries such as pharmaceuticals, electronics, and healthcare. With reliable quality and professional service, we have gained widespread recognition in the international market.
About ZHUOZHU Cleanroom Panels
Rockwool Cleanroom Panels
Rockwool
Rock wool core material's key advantage is its unique combination of fireproof safety and thermal insulation. As a Class A1 non-combustible material, it maintains structural stability at 1000°C while providing excellent thermal insulation (0.032-0.040 W/m·K). This dual functionality makes it ideal for cleanrooms and industrial plants requiring both safety and energy efficiency.
- Class A fireproof
- Super sound absorption
CONTACT US
Address:
Office: Global International, Lanshan District, Linyi City, Shandong Province, China
ZHUOZHU Rock Wool Cleanroom Panel Technical Parameters Table
| Performance Category | Technical Parameters | Test Standard | Remarks |
|---|---|---|---|
| Fire Performance | Class A1 Non-combustible (Structural integrity ≥4 hours at 1000°C) | EN 13501-1 | Smoke toxicity class AQ1 |
| Thermal Insulation | Thermal Conductivity: 0.032-0.040 W/(m·K) | GB/T 10295 | 35% energy saving with 100mm thickness |
| Acoustic Performance | Noise Reduction Coefficient (NRC): Up to 0.95 | ASTM C423 | Noise reduction up to 25 dB |
| Moisture Resistance | Water Absorption <1.5% (at 95% humidity) | GB/T 5480 | Hydrophobic rate ≥98% |
| Structural Strength | Compressive Strength ≥120kPa, Wind Pressure Resistance ±1000Pa | GB/T 13480 | Density optional 80-160kg/m³ |
| Environmental Certification | LEED v4.1, Recycled Material Content ≥30% | – | 40% reduction in carbon emissions |
Note: The above data are based on ZHUOZHU laboratory and third-party test reports. Actual performance may vary depending on the usage environment.
Outstanding Sound Absorption and Noise Reduction
The unique open fiber structure gives the panels excellent acoustic performance, with a Noise Reduction Coefficient (NRC) of up to 0.95. In precision instrument workshop projects, tests have shown that environmental noise can be reduced by up to 25 decibels, creating a quiet and comfortable operating environment for workers.
Stable Structural Strength
The combination of high-density rock wool core material (optional density of 80–160kg/m³) and a reinforced steel frame provides a compressive strength of over 120kPa. The unique tongue-and-groove design allows the installed wall system to withstand wind pressure tests of ±1000Pa, ensuring stability in cleanroom pressure control.
Environmental Sustainability
The product has obtained LEED v4.1 certification, with over 30% of the raw materials being recycled, and is fully recyclable. The production process uses clean energy, reducing carbon emissions by 40% compared to traditional methods, helping customers achieve green building goals.
Superior Moisture and Corrosion Resistance
Through special hydrophobic treatment, the panels have a volumetric water absorption rate of less than 1.5%, maintaining stable performance even in environments with 95% humidity. The surface galvanized steel sheet undergoes special coating treatment, passing a 500-hour salt spray test, ensuring long-term use in cleanrooms with frequent disinfection.
Top-Level Fire Safety Performance
Our rock wool cleanroom panels use natural basalt as the raw material, meeting the A1-grade non-combustible standard (EN 13501-1). Tests show that the panels can maintain structural integrity for over 4 hours at 1000°C, with a smoke toxicity rating of AQ1, ensuring no toxic fumes are produced in the event of a fire. This makes them particularly suitable for places with strict fire safety requirements, such as pharmaceutical factories and data centers.
Excellent Thermal Insulation Performance
The three-dimensional interwoven structure of the rock wool fibers forms an efficient thermal insulation layer, with a thermal conductivity stabilized at 0.032–0.040 W/(m·K). In practical applications, panels with a thickness of 100mm can reduce cleanroom energy consumption by over 35%, effectively maintaining a constant temperature and humidity environment to meet the stringent requirements of GMP standards.
Rockwool Cleanroom Panels Supplier
As a professional supplier of rock wool cleanroom panels, we understand the importance of a high-quality cleanroom environment to modern industry. Our rock wool cleanroom panels combine excellent thermal insulation with superior sound insulation, making them the ideal choice for creating an ideal cleanroom space.
Product Center
Discover our comprehensive range of thermal insulation materials, including 5 main series and over 30 product finishes, designed to meet the thermal insulation needs of modern buildings.
Metal Sandwich Panels
Polyurethane(PUR/PIR)/Rockwool/EPS/Polyurethane Edge Banding/Solar Energy
OSB SIPs
OSB and polyurethane (or EPS) sandwich, cut and shipped according to your drawings.
Cold Room Panels
Short-term Storage (0°C to +4°C) / Frozen Storage (-18°C to -25°C) / Quick Freezing (-35°C to -40°C)
Clean Room Panels

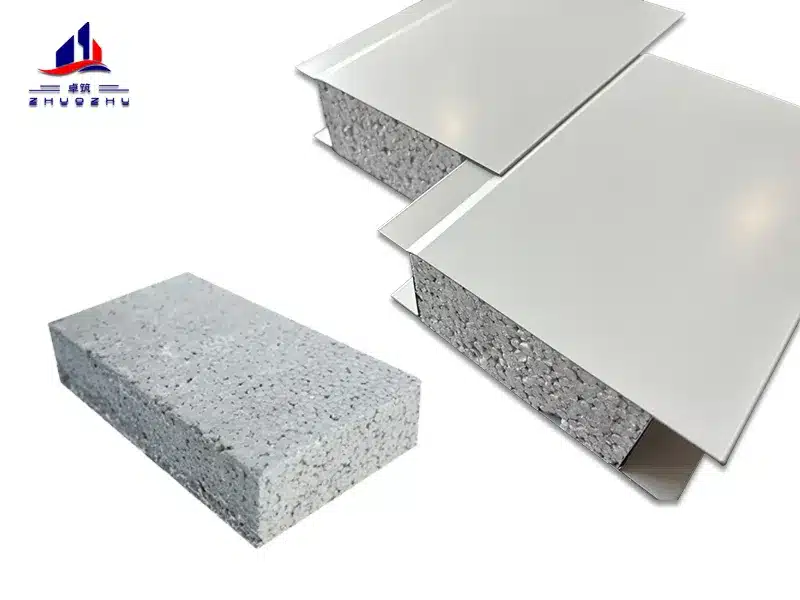

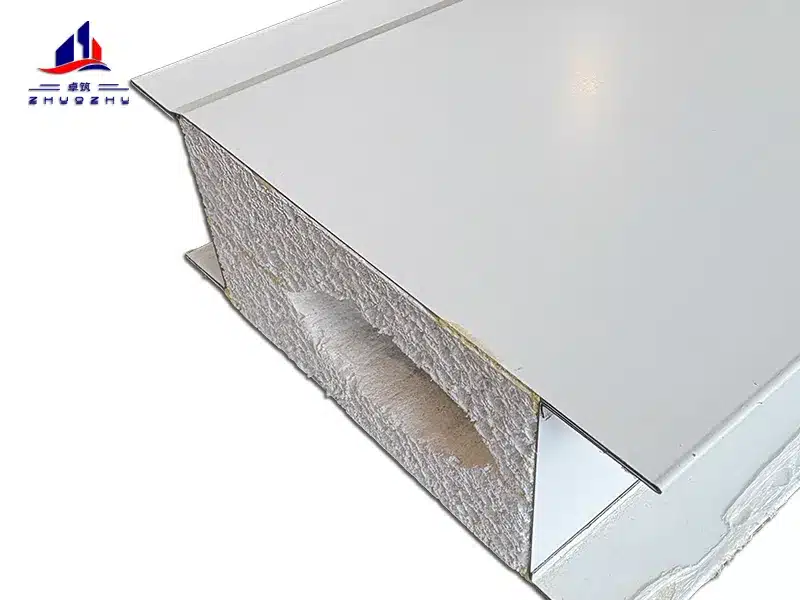

Silica Rock/Fireproof EPS/Glass Magnesium/Magnesium Oxysulfate
