In building insulation systems, selecting the proper panel dimensions is crucial not only for construction efficiency but also directly impacts insulation performance and project costs. As China’s leading insulation materials manufacturer, ZHUOZHU provides comprehensive dimensional options to ensure the perfect solution for every project.
The Perfect Balance Between Standardization and Customization
ZHUOZHU adheres to the philosophy of “standard products ensure supply, customized products meet individual needs,” establishing a complete dimensional system. While offering standard sizes for all products, we support customization according to project requirements, ensuring optimal suitability for everything from large industrial projects to refined commercial spaces.
Detailed Analysis of Five Core Product Dimensions

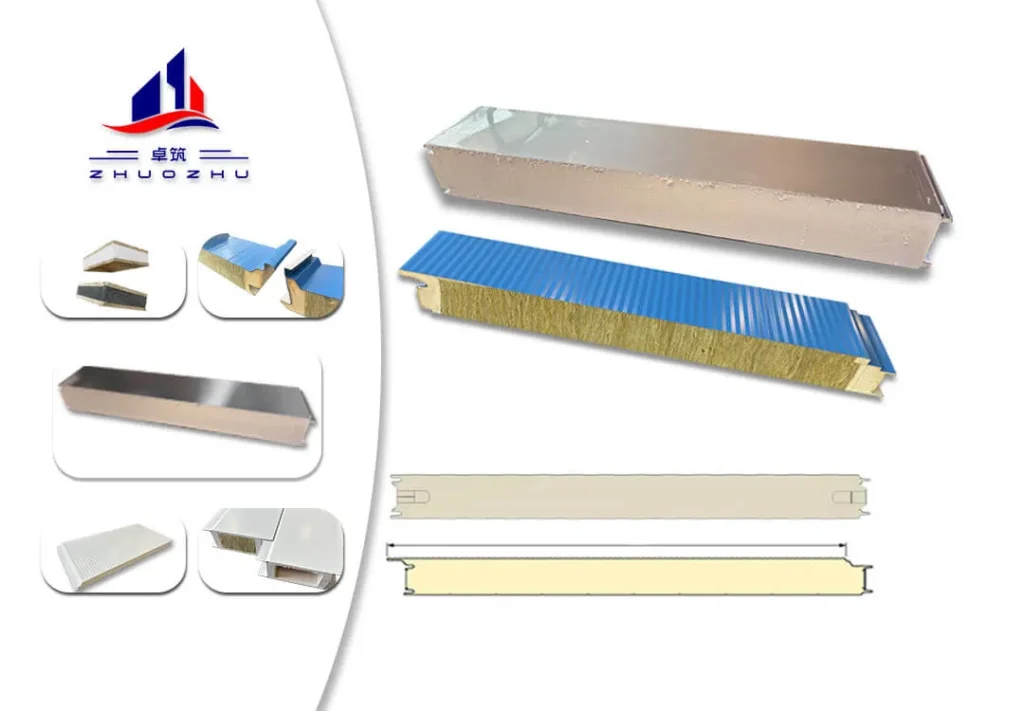

1. Metal Sandwich Wall Panels: The Preferred Choice for Building Envelopes
Standard Dimension Range
- Available Width (mm): 500 – 1150
- Available Thickness (mm): 100, 125, 150, 175, 200, 250
- Standard Length: 2m-12m (customizable)
Technical Advantages
- Multiple widths accommodate different modular design requirements
- Optimized thicknesses meet energy efficiency standards across regions
- Maximum 12m length reduces joints, enhancing airtightness
Application Scenarios
- Industrial plant exterior walls
- Commercial building envelopes
- Storage and logistics facilities

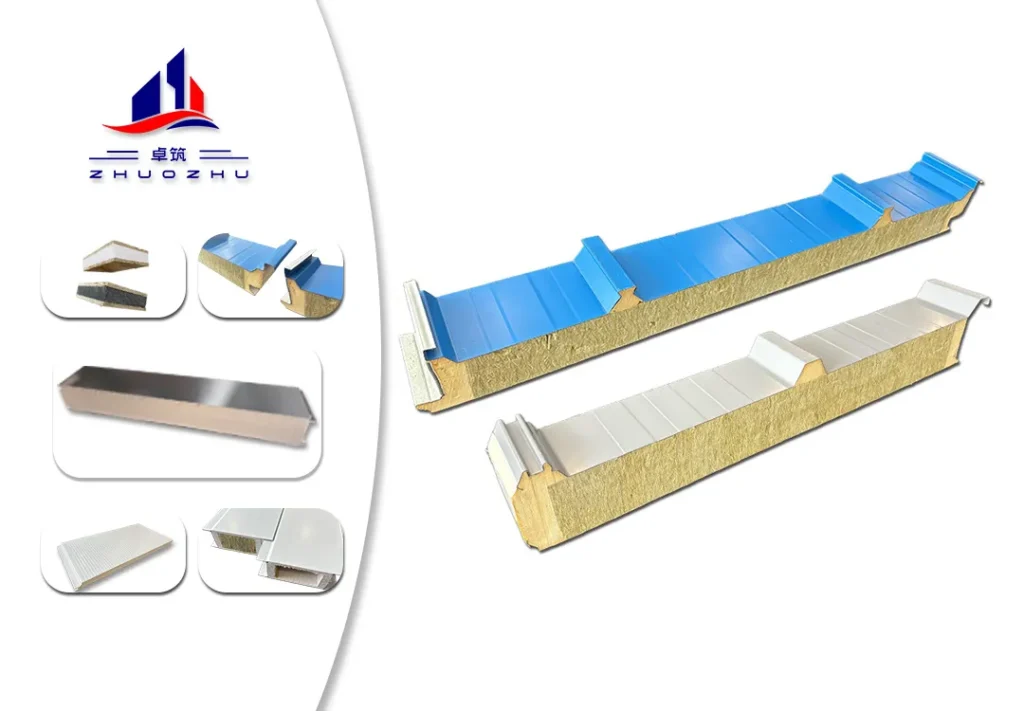

2. Metal Sandwich Roof Panels: Professional Roof System Solutions
Standard Dimension Specifications
- Standard Width (mm): 1000
- Available Thickness (mm): 30, 38, 50, 60, 75, 80, 100, 150
- Standard Length: 2m-12m
Professional Design Features
- 1000mm width optimized through wind tunnel testing for best wind uplift resistance
- 30mm thin design suitable for interior partitions
- 150mm thick panels meet insulation requirements in severe cold regions
Typical Applications
- Large industrial plants
- Sports venues
- Transportation hubs

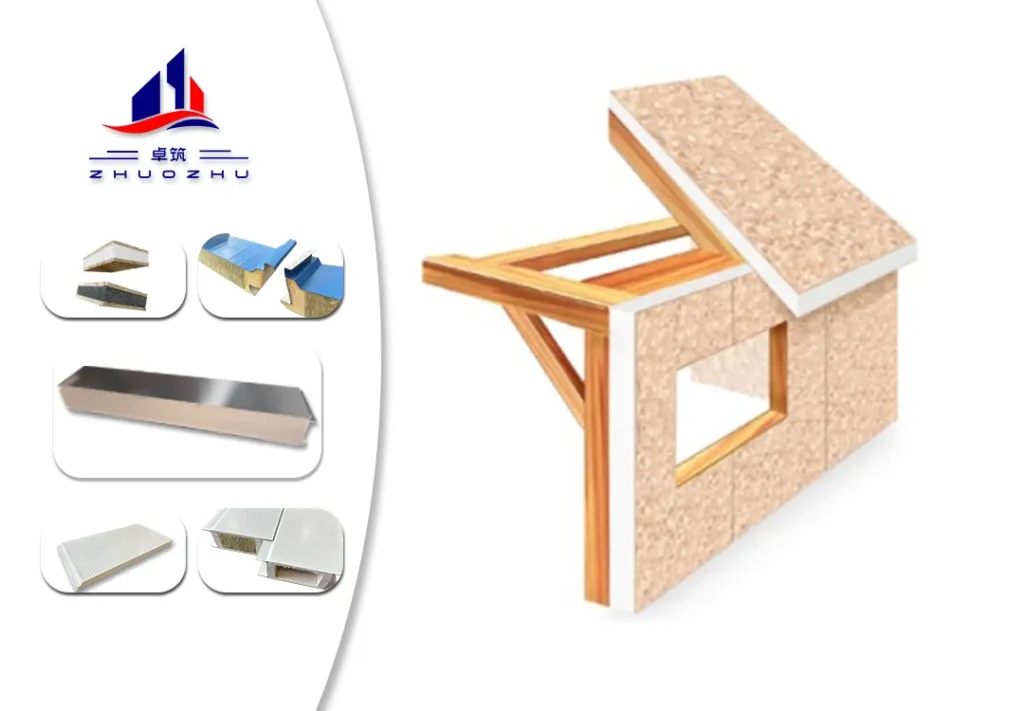

3. OSB Structural Insulated Panels (SIPs): Exemplary Building Industrialization
Standard Dimensions
- Standard Panel: 2440×1220mm (industry standard specification)
- Custom Range: Width 1200-2500mm, Length 2100-5500mm
Technical Innovation
- Large dimensions reduce on-site splicing
- Precise tolerances ensure installation accuracy
- Compatible with mainstream building modules
Usage Scenarios
- Prefabricated buildings
- Fast-track construction projects
- Customized residences

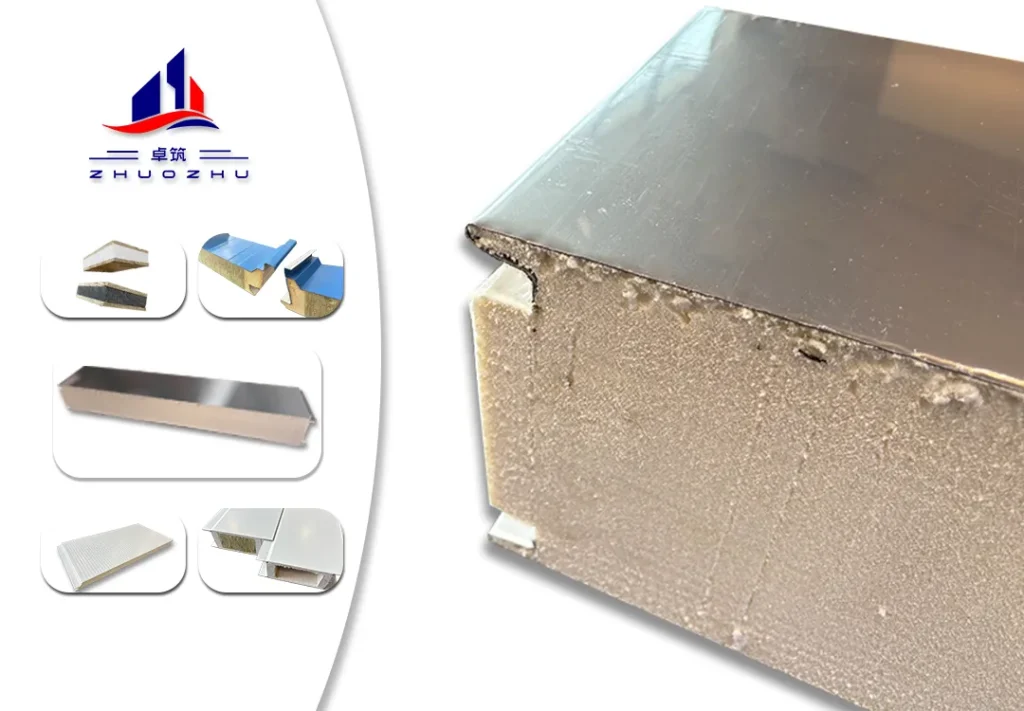

4. Cold Room Panels: Professional Protection for Cold Chain Logistics
Dimensional System
- Available Width (mm): 500 – 1150
- Available Thickness (mm): 100, 125, 150, 175, 200, 250
- Standard Length: 2m-12m
Technical Breakthroughs
- 50mm thin panels using high-performance PIR core, λ-value reaches 0.022W/(m·K)
- 250mm ultra-thick panels meet deep freeze storage requirements
- Special lock seam design ensures airtightness
Application Fields
- Cold chain logistics centers
- Food processing plants
- Pharmaceutical storage

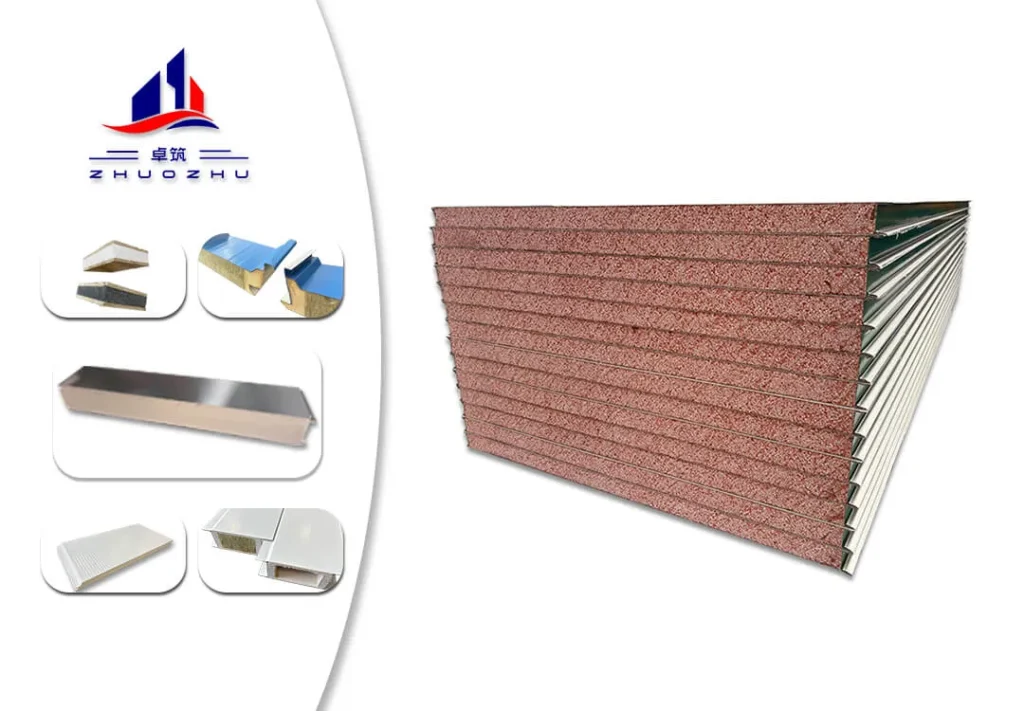

5. Cleanroom Panels: Precision Protection for Clean Environments
Precise Dimensions
- Thickness (mm): 50, 75, 100, 150, 200
- Standard Width (mm): 950, 1150
- Maximum Length: ≤12,000mm
Professional Recommendations
- Interior wall cladding: 50-100mm (balancing space and insulation)
- Partition walls: 100-200mm (ensuring cleanliness)
- Ceiling systems: 50-75mm (controlling floor height)
Suitable Locations
- Electronics clean rooms
- Pharmaceutical production workshops
- Biological laboratories

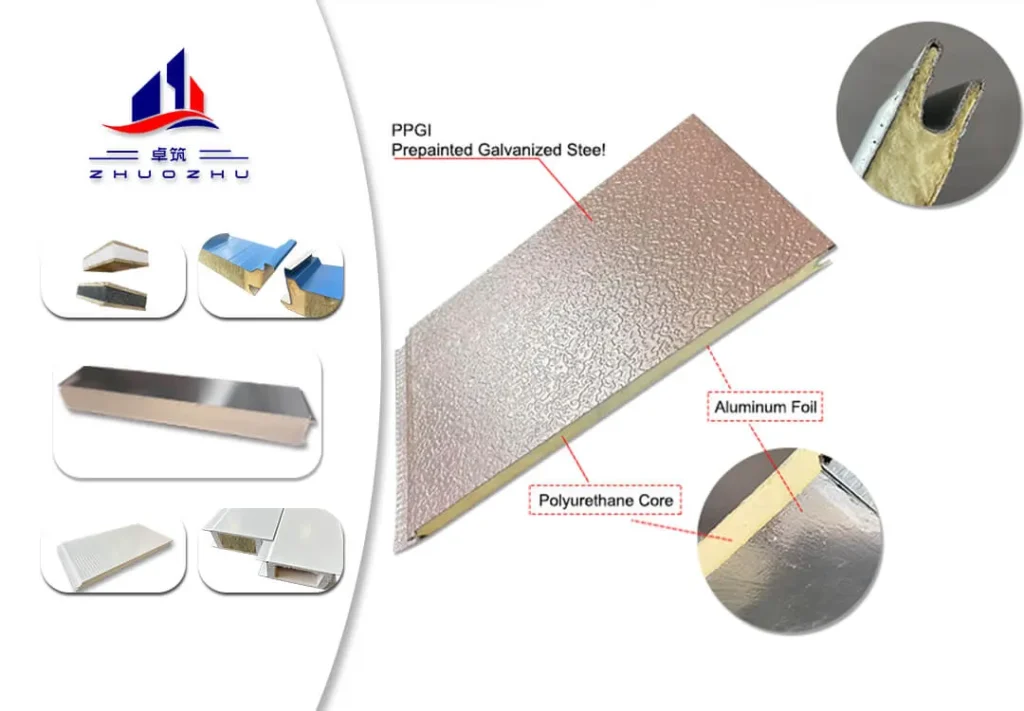

Special Product: Metal Carved Panels
Perfect Integration of Decoration and Function
- Standard Width: 380mm (optimal visual effect)
- Thickness Options: 16, 20, 25, 40mm
- Maximum Length: 11.9m (optimized for shipping packaging)
Design Philosophy
- 16mm thickness focuses on decoration and moderate insulation
- 40mm thickness meets higher insulation requirements
- 11.9m length fully considers international logistics efficiency
Technical Considerations for Dimension Selection
Insulation Performance Calculation
Based on ZHUOZHU Engineering Laboratory data, recommended thickness selections for different climate zones:
- Temperate Regions: 100mm rock wool or 80mm PIR
- Cold Regions: 150mm rock wool or 120mm PIR
- Severe Cold Regions: 200mm rock wool or 150mm PIR
Economic Benefit Analysis
- Standard Dimensions: 7-10 day delivery, optimal cost
- Custom Dimensions: 15-20 day delivery, meets special requirements
- Mixed Procurement: Mainly standard sizes with local customization, balancing schedule and effectiveness
Logistics and Installation Optimization
Intelligent Dimension Design
- 11.9m maximum length: Adapts to standard shipping containers, saves freight costs
- Modular widths: Reduce on-site cutting, lower waste
- Weight control: Optimized single panel weight for easy manual installation
Installation Efficiency Improvement
- Large panels: Reduce joints, increase installation speed by 30%
- Standard panels: Easy replacement, low maintenance costs
- Custom panels: Precise adaptation, reduces secondary processing
ZHUOZHU’s Dimensional Service Advantages
Technical Support System
- Free dimensional optimization solutions
- On-site measurement services
- Installation guidance services
Quality Assurance
- Dimensional tolerances strictly controlled within ±1mm
- Batch product dimensional consistency guaranteed
- Professional packaging protection solutions
Global Service Experience
- Participation in 30+ national key projects
- Familiarity with various national standards and regulations
- Extensive experience in special dimension customization
Conclusion
Choosing the right insulation panel dimensions is both a science and an art. Leveraging years of technical accumulation and project experience, ZHUOZHU provides comprehensive dimensional solutions from standard products to complete customization. Whether for standard projects pursuing economic benefits or complex engineering requiring special customization, we can provide the most suitable dimensional recommendations.
Making the right dimensions deliver maximum value—this is ZHUOZHU’s commitment.
