Vapor Barrier Systems for Cold Storage Facilities: Comprehensive Moisture Control Engineering

Introduction: The Critical Role of Moisture Management in Cold Storage Integrity

In cold storage and freezer facilities, where temperatures can plummet to -30°C or lower, moisture control is not just a consideration—it’s the fundamental determinant of long-term building performance and energy efficiency. The dramatic temperature differential between the interior and exterior creates an immense driving force for water vapor migration. Without a perfectly engineered vapor barrier system, moisture infiltrates the insulation, leading to condensation, frost formation, insulation degradation, structural corrosion, and mold growth. These issues can reduce insulation R-value by over 50% within years and lead to catastrophic structural failure. ZHUOZHU, having engineered moisture control solutions for hundreds of cold storage projects across climate zones—from tropical Southeast Asia to arid Middle East to cold Northern Europe—provides this definitive guide to vapor barrier science, installation, and integration with advanced cold room panels.

Part 1: The Physics of Moisture Movement in Cold Environments

1.1 Understanding Vapor Drive and Condensation Risks

The science behind moisture problems in cold storage is governed by basic physics:

Vapor Pressure Differential: Warm air holds exponentially more moisture than cold air. This creates a powerful pressure gradient that drives water vapor from the warm exterior (or adjacent spaces) toward the cold interior.
Dew Point Tracking: Within the building envelope, there exists a dew point plane where the temperature drops enough for vapor to condense into liquid water. In cold storage, this plane must be kept outside the insulation layer at all times.
Capillary Action & Air Leakage: Moisture moves not only by diffusion through materials but, more critically, by air leakage through gaps, seams, and penetrations. This convective moisture transfer can be 50-100 times greater than diffusion alone.

1.2 Consequences of Moisture Failure in Cold Storage

The impacts of inadequate vapor control are severe and progressive:

Performance Degradation Timeline:

Typical Failure Progression Without Proper Vapor Barrier:
Year 1-2: Initial condensation forms at thermal bridges and seams
Year 3-5: Insulation absorbs moisture, R-value decreases 20-30%
Year 5-8: Frost accumulation within wall cavities, metal corrosion begins
Year 8+: Structural degradation, mold growth, complete insulation failure

Specific risks include:

Insulation Failure: Moisture accumulation in PIR, EPS, or mineral wool insulation drastically reduces its thermal resistance. Wet insulation can lose over 90% of its R-value.
Structural Damage: Ice formation within walls exerts tremendous pressure (ice expands 9% in volume), damaging structural components and connections to the steel structure.
Corrosion: Condensation on cold steel surfaces, including C/Z purlins and fasteners, accelerates rust and corrosion.
Mold & Contamination: In facilities storing food or pharmaceuticals, mold growth presents health risks and can lead to product contamination and regulatory violations.
Energy Penalty: Compressors work harder to maintain temperatures as insulation degrades, increasing energy consumption significantly.

Part 2: Vapor Barrier Material Science & Selection Criteria

2.1 Key Performance Metrics for Vapor Barrier Materials

Selecting the right material requires understanding these critical specifications:

Permeance Rating (perms): Measures the rate of water vapor transmission through a material. For cold storage applications, vapor barriers should typically have a permeance of ≤0.02 perms (Class I vapor retarder according to ASTM E96).
Tensile Strength & Puncture Resistance: Must withstand installation stresses, thermal movement, and potential impacts during facility operation. Reinforced laminates with polyester or fiberglass scrim offer superior durability.
Temperature Flexibility: Materials must remain pliable and functional at the lowest operational temperatures without becoming brittle or cracking.
Seam Strength: The seam between barrier sheets must be as strong and impermeable as the material itself, often requiring specific adhesives or welding techniques.
Long-Term Stability: Resistance to UV degradation (if exposed), oxidation, and chemical interaction with adjacent materials like insulation facers or cold room panel sealants.

2.2 Material Types & Their Applications

Laminated Foil Barriers:

Construction: Typically aluminum foil laminated to polyethylene or polypropylene.
Advantages: Excellent vapor resistance (≤0.001 perms), radiant heat reflection properties.
Best For: Ultra-low temperature applications (< -25°C), new construction where excellent seam sealing is achievable.

Reinforced Polyethylene Membranes:

Construction: Multi-layer polyethylene with woven or non-woven scrim reinforcement.
Advantages: High tensile strength, good puncture resistance, moderate flexibility at low temperatures.
Best For: General cold storage, retrofit applications, areas requiring high durability.

Elastomeric Sheet Membranes:

Construction: Synthetic rubber-based sheets (EPDM, butyl, or PVC-based).
Advantages: Exceptional elasticity and elongation capacity, self-healing properties for small punctures, excellent seam welding capability.
Best For: Complex geometries, areas with significant thermal or structural movement, joints and penetrations.

Spray-Applied or Fluid-Applied Barriers:

Construction: Liquid polymer (polyurethane, acrylic, or rubber-based) sprayed or rolled onto the substrate.
Advantages: Creates a seamless, monolithic membrane that conforms perfectly to complex shapes and details.
Best For: Irregular surfaces, complex penetrations, retrofit over existing substrates, ensuring continuity at difficult details.

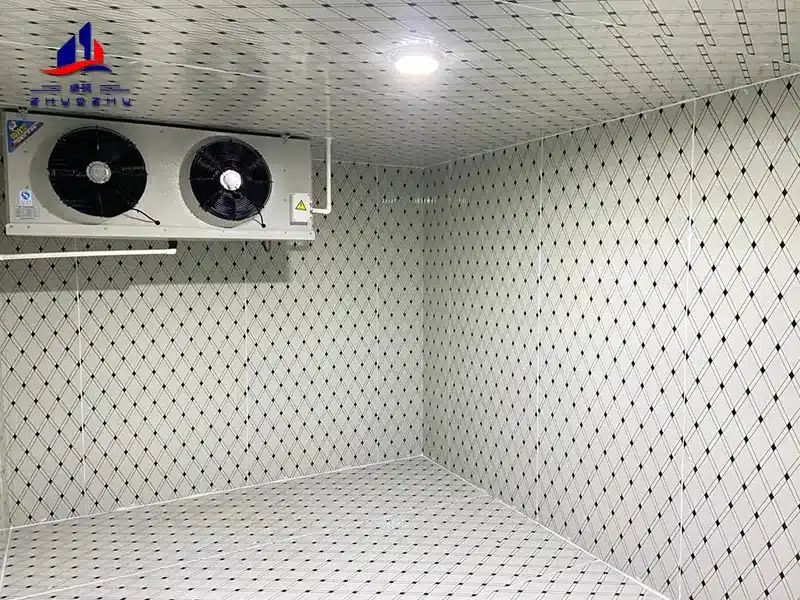

2.3 Integration with Insulated Panel Systems

The vapor barrier must work in concert with the primary insulated envelope:

For PIR sandwich panels or EPS sandwich panels with metal facings: The interior metal skin itself can act as the primary vapor barrier if all joints, seams, and penetrations are perfectly sealed. This requires specialized joint designs and factory-applied sealing systems.
For rock wool sandwich panels or other breathable cores: A separate, continuous vapor barrier layer on the warm side is absolutely essential, as mineral wool is vapor-permeable.
Hybrid Approach: Many advanced systems combine panel-integrated sealing with an additional membrane layer for redundancy, especially in critical or ultra-low temperature applications.

Part 3: Design Principles & Installation Methodology

3.1 The “Perfect Barrier” Design Philosophy

An effective vapor barrier system follows these non-negotiable principles:

Continuity: The barrier must be continuous across all six sides of the building envelope—walls, roof, and floor—without interruption.
Warm-Side Placement: The vapor barrier must always be installed on the warm side of the insulation (the exterior in cold climates, interior in hot climates with refrigeration).
Seamless Transitions: Critical attention must be paid to transitions between different envelope elements: wall-to-roof, wall-to-floor, wall-to-door, and around all penetrations.
Redundancy: In critical applications, a secondary moisture management strategy (such as a ventilated air gap or drying potential) should be incorporated as a backup.

3.2 Detailed Installation Protocol for Critical Junctions

Wall-to-Floor Transition (The Most Critical Detail):

Recommended Wall-to-Floor Vapor Barrier Detail:
1. Floor slab preparation with proper slope and drainage
2. Installation of floor vapor barrier, extended up wall base

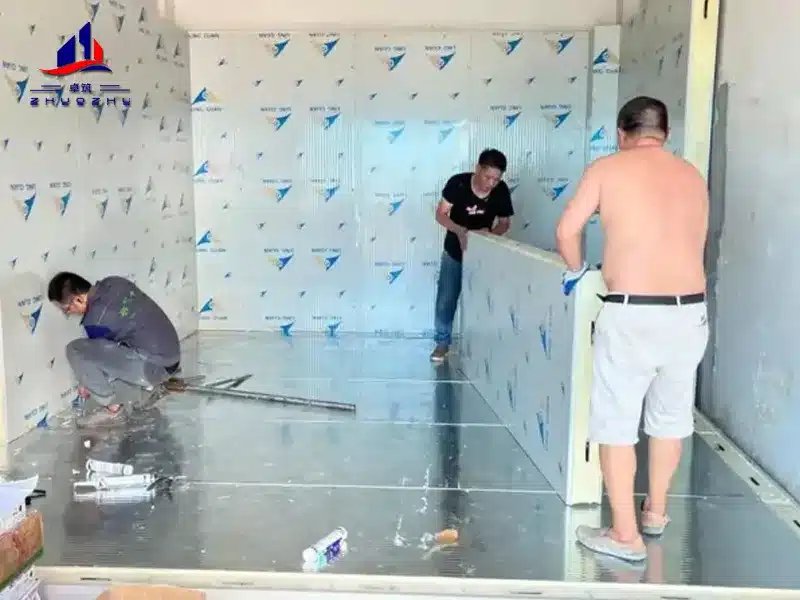

3. **Cold room panel** installation, with panel base sealed to floor barrier
4. Application of continuous flexible sealant or fluid-applied membrane at junction
5. Installation of protective curb or coving system

Penetration Sealing Methodology:

Pipe & Conduit Penetrations: Use pre-formed rubber boots or flashing collars that are mechanically clamped and sealed to both the pipe and the barrier.
Electrical Boxes: Install vapor-tight enclosures with gasketed covers and seal conduit entries.
Structural Penetrations: For steel structure elements passing through the envelope, use flexible bellows or sleeves that allow for thermal movement while maintaining the seal.

Seam Sealing Techniques:

Heat Welding: For polyethylene-based sheets, creates a homogeneous, strong seam.
Solvent Welding: For certain plastic membranes, chemically fuses sheets together.
Pressure-Sensitive Tapes: Must be specifically designed for vapor barrier applications and compatible with the membrane material. Not all tapes perform equally at low temperatures.
Liquid Sealants: Used for complex seams or repairs, must remain flexible at operational temperatures.

3.3 Integration with ZHUOZHU Cold Room Panel Systems

Our engineered approach ensures the vapor barrier is not an afterthought but an integrated system component:

Panel-Integrated Edge Seals: Many ZHUOZHU cold room panels feature factory-applied gaskets or sealants on panel edges that are designed to connect seamlessly with field-applied vapor barrier membranes.
Prefabricated Corner & Junction Elements: We supply pre-formed internal and external corner pieces, tee junctions, and penetration collars that maintain barrier continuity.
Compatible Material Specifications: We provide specifications for vapor barrier materials and accessories that are chemically and physically compatible with our panel facings, sealants, and insulation cores.

Part 4: Testing, Verification & Quality Assurance

4.1 Pre-Installation Testing & Material Verification

Material Certification: Require manufacturers’ test reports for permeance (ASTM E96), tensile strength (ASTM D882), low-temperature flexibility (ASTM D2136), and seam strength.
Compatibility Testing: Test adhesion between proposed sealants, tapes, and the primary barrier material under simulated service conditions.
Mock-Up Panels: Construct sample wall sections including all materials, seams, and penetrations, then subject them to environmental chamber testing (temperature cycling, humidity exposure).

4.2 In-Process Quality Control During Installation

Critical Checkpoints:

Substrate Preparation: Verify surface is clean, dry, smooth, and free of sharp projections.
First Sheet Installation: Check alignment, temporary fastening, and initial seam sealing.
Penetration Detailing: Inspect every pipe, conduit, and structural penetration before closing walls.
Seam Verification: Perform destructive and non-destructive testing on sample seams (peel tests, adhesion tests).

4.3 Post-Installation Performance Verification

Visual Inspection: Comprehensive inspection of entire barrier surface under bright light from oblique angles to identify punctures, wrinkles, or poorly sealed seams.
Smoke Testing: Use theatrical smoke or fog machines on the warm side with the cold room operating to identify air leakage paths (which are also vapor leakage paths).
Infrared Thermography: Conduct an IR scan once the facility is operational to identify cold spots indicating thermal bridges where condensation risk is highest.
Pressure Testing: For critical facilities, consider whole-building or compartmentalized pressure testing (blower door testing) to quantify air leakage rates.

Part 5: Special Considerations for Different Cold Storage Applications

5.1 Blast Freezers vs. Long-Term Storage Freezers

Blast Freezers (-35°C to -45°C): Experience rapid and extreme temperature differentials. Vapor barriers require exceptional low-temperature flexibility and must accommodate significant thermal contraction/expansion of the structure. Redundant systems are often justified.
Storage Freezers (-18°C to -25°C): Steady-state operation but continuous vapor drive. Focus on perfect seam sealing and penetration detailing over decades of service.

5.2 High-Humidity vs. Arid Climates

Tropical/High-Humidity Climates: Exterior vapor pressure is extremely high. Requires the most rigorous barrier systems with lowest permeance ratings. Special attention to drying potential during construction is critical.
Arid Climates: While exterior vapor drive is lower, interior dryness is crucial for product quality. Vapor barriers prevent moisture loss from products and icing on evaporator coils.

5.3 Retrofit & Renovation Projects

Existing Moisture Assessment: Essential to test existing insulation for moisture content before enclosing with new vapor barriers. Wet insulation must be replaced.
Compatibility with Existing Systems: New barrier materials must adhere to and seal with existing substrates, which may require specialized primers or transition membranes.
Phased Implementation: Strategies for installing vapor barriers while maintaining partial facility operation, often involving temporary partitions and localized humidity control.

Conclusion: Vapor Control as the Foundation of Cold Storage Longevity

The success of a cold storage facility over its 20- to 30-year lifespan is fundamentally determined in the design and installation of its vapor control layer. This invisible system works silently behind cold room panels and insulation, yet its failure becomes dramatically visible through ice accumulation, corrosion, mold, and skyrocketing energy bills.

ZHUOZHU’s integrated approach recognizes that vapor barriers cannot be an isolated specification item. They must be engineered as part of a complete moisture management system that includes:

Compatible materials that work together—from the steel structure to the panel facings to the sealants
Detailed design of every junction, penetration, and transition
Verified installation through rigorous quality control and testing
Long-term performance through proper maintenance and monitoring protocols

Investing in a properly engineered and installed vapor barrier system is not an optional upgrade—it is essential insurance protecting the far greater investments in refrigeration equipment, building structure, and stored inventory.
