In the fields of building envelopes and industrial partitions, the choice of panel thickness directly impacts a project’s insulation effectiveness, structural cost, and space utilization. The 50mm sandwich panel, as a widely used medium-thickness specification, finds the perfect balance between performance and economy in numerous projects. As a professional building materials manufacturer and exporter, ZHUOZHU offers 50mm sandwich panels with various core materials, including 50mm EPS panels, 50mm PIR sandwich panels, and 50mm rock wool sandwich panels, meeting the diverse needs of global clients. This article delves into the performance characteristics, suitable application scenarios, and key selection points for 50mm thick sandwich panels.
Why Choose 50mm Thickness? Understanding the Core Parameters of Sandwich Panels
The 50mm insulated panel is not an arbitrarily set specification but a standardized choice formed through long-term engineering practice. This thickness typically represents the optimal balance between insulation performance, structural strength, installation convenience, and cost control.
Analysis of Key Performance Indicators
- Insulation Performance (R-value/U-value): For the most common 50mm EPS sandwich panel, its thermal conductivity (K-value) typically ranges between 0.035-0.040 W/(m·K), providing a thermal resistance (R-value) of approximately 1.25-1.43 m²·K/W. This level of insulation is sufficient to meet the basic wall insulation requirements for non-residential buildings or buildings in temperate climate zones in many parts of the world. If a high-performance PIR core is used, the insulation effectiveness can be improved by 30-50%.
- Structural Strength and Span: Metal-faced sandwich panels with a 50mm thickness offer moderate bending stiffness. Common Alu-Zinc steel sheet facings enable them to withstand standard wind loads and construction loads at purlin spacings of 2-3 meters, making them an ideal choice for industrial plants, warehouse partition walls, and temporary structures.
- Economy and Space Efficiency: Compared to thicker panels, the sandwich panel 50mm offers advantages in both material and transportation costs. Furthermore, it does not excessively occupy indoor space, making it particularly suitable for retrofit projects with space constraints or situations where maximizing interior area is crucial.
Detailed Overview of ZHUOZHU 50mm Sandwich Panel Product Series

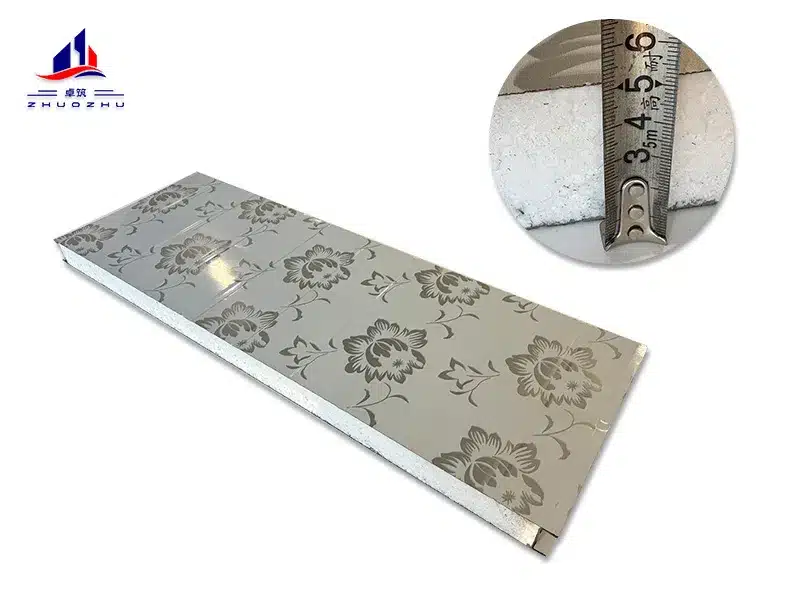

1. Cost-Effective Type: 50mm EPS Sandwich Panel
The 50mm eps sandwich panel is one of the most economical insulated panel solutions on the market, widely used in cost-sensitive projects with low fire resistance requirements.
- Core Advantages:
- Excellent Cost-Effectiveness: The low cost of the EPS core material gives the overall panel strong price competitiveness.
- Very Lightweight: Density around 12-18kg/m³, significantly reducing the load on the primary structure and lowering the cost of support structures.
- Easy to Fabricate and Install: Can be easily cut and drilled on-site, enabling fast installation and simple construction.
- Typical Applications:
- Internal/external partition walls and roofs for standard industrial plants (non-fire compartment areas)
- Internal partitions in storage and logistics buildings
- Secondary insulation zones in cold storage (non-core low-temperature areas)
- Envelope structures for exhibition halls and temporary pavilions

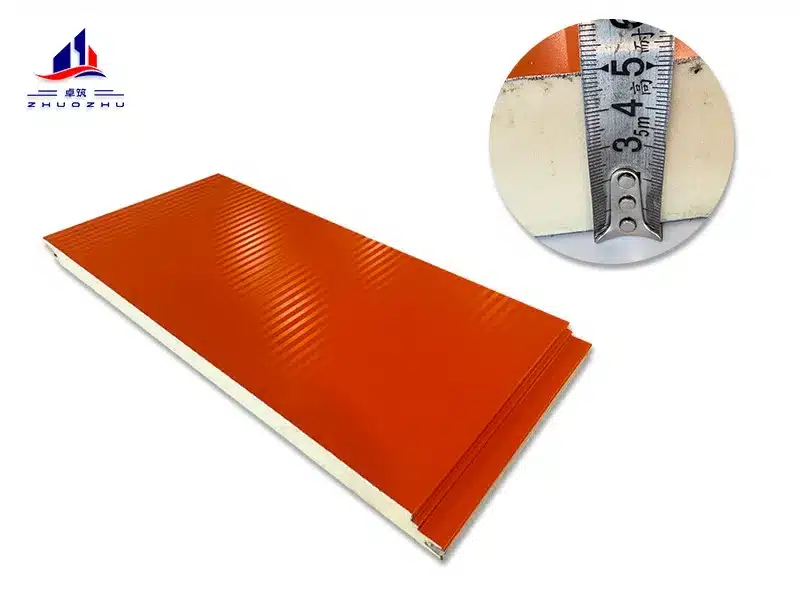

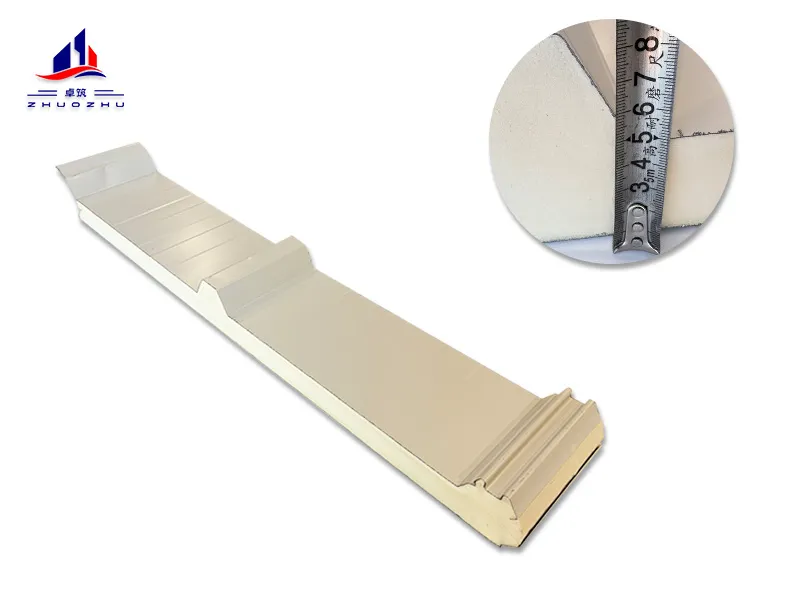

2. Performance-Balanced Type: 50mm PIR/PUR Sandwich Panel
For projects requiring better insulation and a certain fire rating, the 50mm PIR sandwich panel offers an upgraded option.
- Core Advantages:
- Excellent Insulation Performance: At the same 50mm thickness, its insulation effectiveness is about 30-60% higher than EPS panels, effectively reducing building energy consumption and mitigating thermal bridge effects.
- Good Fire Performance: Typically achieves Class B1 (flame-retardant) standard, meeting the code requirements for many commercial and industrial buildings.
- Higher Strength-to-Weight Ratio: The closed-cell structure is denser and offers better rigidity, suitable for applications with higher demands for panel flatness and stiffness.
- Typical Applications:
- Partition walls and ceilings for offices and retail stores with energy consumption requirements
- Roofs and walls of light industrial plants
- Areas with relatively higher temperature requirements (e.g., above 0°C chillers) within cold room panel systems

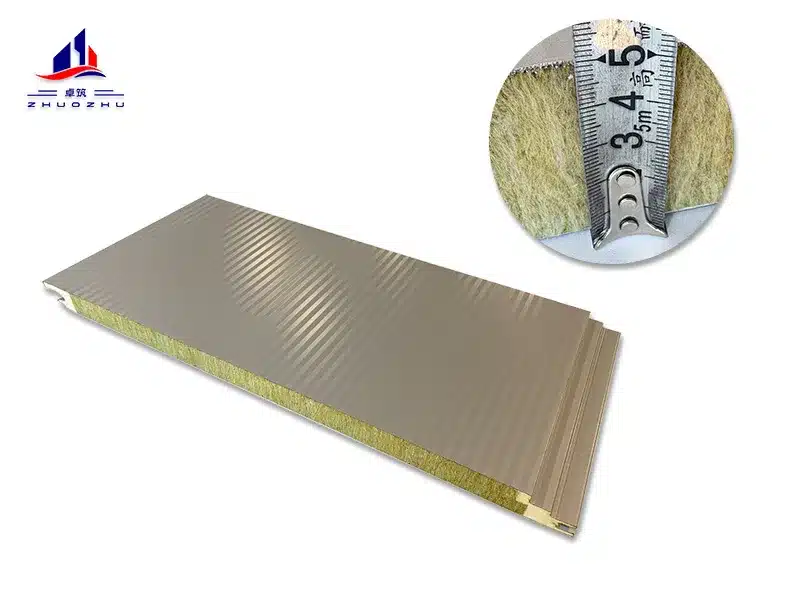

3. Fire-Safety Type: 50mm Rock Wool Sandwich Panel
When a project has clear fire code requirements, the 50mm rock wool sandwich panel becomes a necessary consideration.
- Core Advantages:
- Class A Non-Combustible: Fully meets the strict requirements for fire resistance duration in firewalls and critical compartment areas.
- Good Acoustic Insulation: Besides thermal insulation, it effectively improves indoor acoustic environments.
- High-Temperature Stability: Inorganic material, does not produce toxic smoke in fire, good dimensional stability.
- Typical Applications:
- Fire compartment partition walls within buildings
- Enclosures for equipment rooms and pipe shafts with special fire safety requirements
- Enclosures for areas with high fire requirements within cleanroom panel systems
Key Selection Factors: When to Choose 50mm Thickness?
Situations for Choosing 50mm Sandwich Panels:
- Temperate Climate Regions: Moderate annual average temperatures, no extreme requirements for winter insulation or summer heat protection.
- Moderate Indoor Environmental Control Requirements: Such as standard warehouses, workshops, non-precision production areas.
- Strict Budget Control: Projects sensitive to initial investment costs, needing a balance between performance and cost.
- Space Constraints: Building floor height or spatial layout does not allow for overly thick panels.
- Temporary or Relocatable Structures: Structures requiring lightweight, easy disassembly, and reusability.
Consider Thicker Panels in These Situations:
- Severe Cold or Hot Climates: Higher R-values are needed to meet building energy codes.
- Core Areas of Cold Chain Logistics: Low-temperature cold stores (below -18°C) typically require 100mm-200mm thick cold room panels.
- High-Grade Cleanrooms: Environments with extremely high precision requirements for temperature and humidity control.
- Special Acoustic Requirements: Recording studios, theaters, etc., requiring very high sound insulation ratings.
ZHUOZHU’s Manufacturing Advantages and Global Service
As a professional factory from China, ZHUOZHU has significant advantages in producing standardized products like sandwich panel eps 50mm:
- Scale and Consistency: Automated production lines ensure high consistency in the thickness, density, and dimensional accuracy of every panel.
- Flexible Customization: Beyond standard 50mm specifications, we can provide customized sandwich panels based on your specific needs, offering personalization in facing coatings, colors, connection methods, etc.
- Global Export Experience: We are well-versed in international logistics and packaging standards, ensuring the safe and efficient transportation of panels from our Chinese factory to global construction sites.
Whether you need wholesale sandwich panels for large projects or small-batch special orders, ZHUOZHU can provide reliable product solutions and professional technical support.
