SIP roof panels represent a revolutionary approach to building construction, combining structural support and thermal insulation in a single, high-performance component. As a leading Chinese manufacturer, ZHUOZHU specializes in advanced SIP solutions that deliver exceptional energy efficiency and structural integrity for modern buildings.

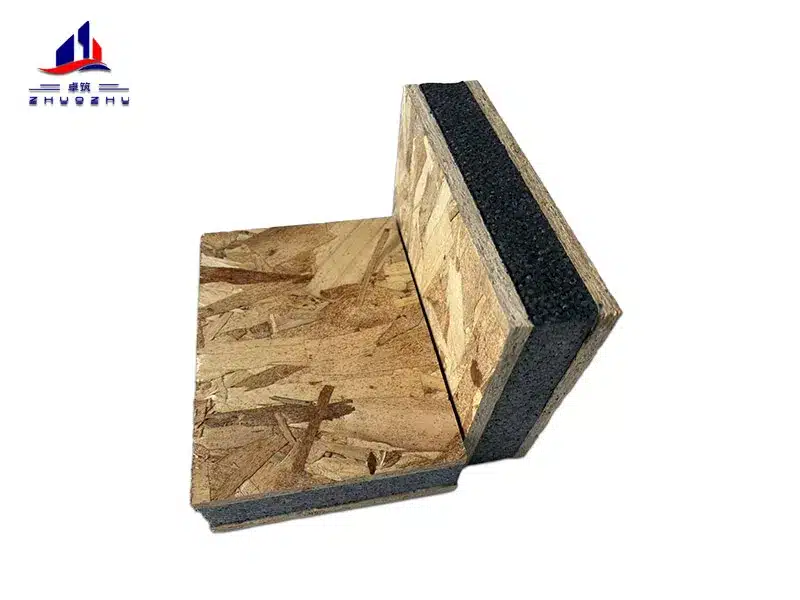

What are OSB SIPs (Structural Insulated Panels)?
Structural Insulated Panels (SIPs) are composite building materials consisting of an insulating foam core sandwiched between two structural facings, typically Oriented Strand Board (OSB). This innovative configuration creates a building system that provides both structural framework and insulation in one integrated product.
Key Components:
- Structural Skins: 7/16″ or 1/2″ OSB panels(9mm, 12mm, 15mm, 18mm)
- Insulation Core: High-performance foam materials
- Integrated Design: Factory-engineered composite system
SIP Roof Panels: Advantages and Disadvantages
Advantages:
Superior Thermal Performance
- Continuous insulation eliminates thermal bridging
- High R-values (up to R-35+ for 6.5″ panels)
- Significant reduction in energy costs (30-50% savings)
- Excellent air tightness minimizes heat loss
Structural Strength
- High load-bearing capacity (snow, wind, seismic)
- Uniform weight distribution
- Long-span capabilities reducing need for intermediate supports
- Proven durability in extreme weather conditions
Construction Efficiency
- Rapid installation (50-60% faster than conventional methods)
- Reduced labor costs
- Factory precision ensures consistent quality
- Minimal construction waste
Additional Benefits
- Design flexibility for various architectural styles
- Improved indoor air quality through reduced air infiltration
- Enhanced acoustic insulation
- Compatibility with various exterior finishes
Disadvantages:
Initial Cost Considerations
- Higher upfront material cost compared to traditional framing
- Requires specialized installation knowledge
- Limited availability in some regions
Design Considerations
- Requires precise planning and engineering
- Potential challenges with complex roof geometries
- Need for proper vapor management strategies
SIP Roof Panel Core Materials: Technical Comparison
Technical Comparison of SIP Roof Panel Core Materials
| Characteristic | PUR/PIR Core | XPS Core | Graphene-enhanced EPS Core | EPS Core |
|---|---|---|---|---|
| Key Advantage | Best Overall Performance: Perfect balance of insulation, structure and fire resistance | High compressive strength, excellent moisture resistance | Better thermal performance and strength than conventional EPS | Cost-effective, mature application |
| Thermal Conductivity (W/m·K) | ≤ 0.023 | ~0.035 | ~0.034 | ~0.038 |
| Insulation Efficiency (R-value/inch) | R-6.5 to R-7.0 | ~R-5.0 | ~R-4.5 | ~R-4.0 |
| Structural Strength | Very High | High | Medium | Low |
| Moisture Resistance | Excellent (closed-cell) | Excellent (closed-cell) | Good | Fair (can absorb moisture over time) |
| Fire Performance | Excellent (self-extinguishing) | Good (flame retardant) | Fair | Fair |
| ZHUOZHU Roof Panel Application | ✅ Primary Product & Highly Recommended | ✅ Available | ❌ Not commonly used for roofing | ❌ Not produced (insufficient structural strength) |
| Main Limitations | Relatively higher cost | Environmental concerns, higher cost | Emerging technology, higher cost than standard EPS | Insufficient structural strength for roof loads |
Why ZHUOZHU Doesn’t Produce EPS Core SIP Roof Panels
While EPS core SIPs have their place in wall applications, they present significant limitations for roofing:
Structural Concerns:
- Inadequate load-bearing capacity for roof applications
- Limited resistance to concentrated loads (maintenance workers, equipment)
- Potential compression under sustained roof loads
- Reduced longevity in demanding roof environments
Performance Limitations:
- Lower R-value (R-4 per inch) requires thicker panels
- Moisture absorption concerns in roof applications
- Limited fire resistance capabilities
Roofing System Integration: ZHUOZHU SIP Panels with Various Roof Coverings
Stone Coated Steel Roofing
Perfect Combination Benefits:
- Aesthetic Appeal: Natural stone appearance with modern performance
- Durability: Exceptional weather resistance (50+ year lifespan)
- Thermal Performance: Reflective coatings reduce heat gain
- Structural Compatibility: Matches well with SIP panel strength
- Installation Efficiency: Lightweight yet durable covering
PVC Roofing Membrane
Ideal Partnership Advantages:
- Waterproof Integrity: Seamless protection against water intrusion
- Flexibility: Accommodates normal building movement
- Weather Resistance: Excellent performance in all climates
- Energy Efficiency: Light colors reflect solar radiation
- Maintenance: Easy repair and long service life
Installation Details:
Stone Coated Steel Installation:
- Install SIP roof panels with proper fasteners
- Apply underlayment membrane
- Install steel roofing with concealed clips
- Ensure proper ventilation channels
- Complete flashing details
PVC Membrane Installation:
- Prepare SIP panel surface
- Install separation layer if required
- Mechanically fasten or adhere PVC membrane
- Heat-weld seams for watertight integrity
- Install perimeter securement and flashing
ZHUOZHU: Your Trusted Chinese SIP Roof Panel Supplier
Manufacturing Excellence
- State-of-the-art production facilities
- ISO 9001 certified quality management
- Advanced automated manufacturing processes
- Rigorous quality control at every production stage
Product Range
- PUR/PIR core SIP roof panels (primary focus)
- Custom sizes and thicknesses available
- Various OSB thickness options
- Engineering support for custom requirements
Global Experience
- Successful projects across multiple continents
- Expertise in different climate zones
- Understanding of international building codes
- Export experience to over 30 countries
Technical Support
- Comprehensive engineering documentation
- Installation guidance and training
- Custom design assistance
- On-site technical support available
Why Choose ZHUOZHU SIP Roof Panels?
Quality Assurance
- Consistent panel dimensions and performance
- Third-party testing and certification
- Traceable raw materials
- Continuous product improvement
Performance Guarantee
- Documented thermal performance
- Structural load testing verification
- Long-term durability validation
- Comprehensive technical data
Customer Support
- Responsive pre-sales consultation
- Professional project planning assistance
- Reliable after-sales service
- Technical problem-solving support
Conclusion
ZHUOZHU SIP roof panels represent the pinnacle of roofing technology, combining the structural benefits of traditional construction with the thermal performance of advanced insulation systems. By choosing PUR/PIR core panels and integrating them with high-quality roof coverings like stone coated steel or PVC membranes, builders can create roofing systems that deliver exceptional performance, durability, and energy efficiency.
For projects requiring reliable, high-performance roofing solutions, ZHUOZHU stands ready to provide quality SIP products backed by extensive manufacturing expertise and global project experience.
