In the field of building insulation, panel thickness is a key parameter determining its performance grade and market positioning. When standard-thickness PIR sandwich panels cannot meet the stringent requirements of specific projects, 100mm PIR sandwich panels become a strategic choice for engineers and architects. As a manufacturer and exporter deeply rooted in high-end insulated building materials, ZHUOZHU is committed to providing customers with professional product selection guidance. This article provides an in-depth analysis of the performance advantages of 100mm thick PIR sandwich panels and precisely defines their five core application scenarios to help you make informed engineering decisions.

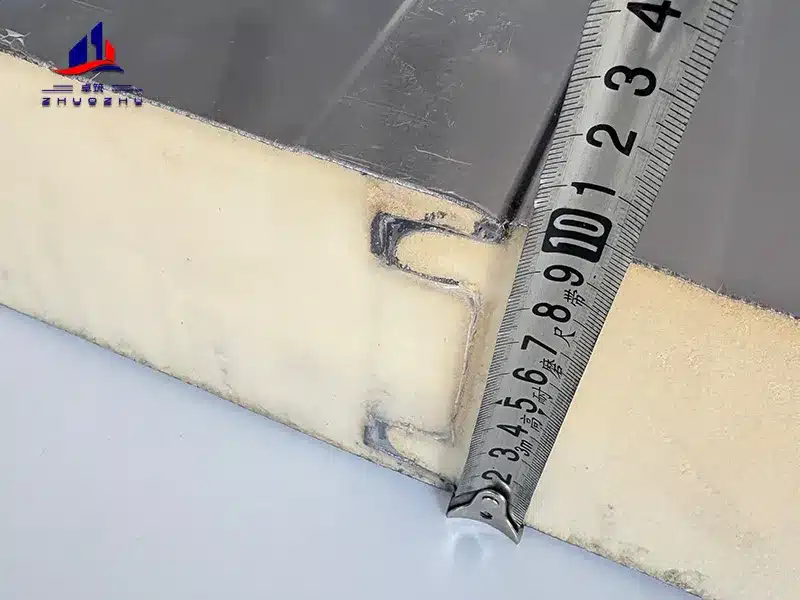

100mm PIR Sandwich Panels: The Performance Benchmark Beyond the Ordinary
100mm PIR sandwich panels are not ordinary insulation materials; they represent a high-level solution in terms of insulation efficiency, structural stiffness, and long-term stability. Their core advantages are:
- Exceptional Insulation Performance (R-value): Building upon the extremely low thermal conductivity of the PIR core (typically 0.022-0.025 W/(m·K)), the 100mm thickness provides a significantly higher thermal resistance (R-value can reach approximately 4.0-4.5 m²·K/W), effectively combating extremely cold or hot climates and substantially reducing building cooling and heating energy consumption.
- Excellent Structural Strength: The increased thickness provides greater bending and compressive resistance, enabling it to handle larger unsupported spans or offer higher safety margins in areas with strong winds or heavy snow.
- Superior Long-Term Stability: The thicker PIR core further enhances the panel’s overall dimensional stability and durability, effectively resisting stress caused by thermal cycling, ensuring the building envelope remains flat and sealed over the long term.
- Significant Sound Insulation Effect: The substantial composite structure provides better airborne sound insulation, positively contributing to improved indoor acoustic comfort.
Detailed Analysis of the Five Core Application Scenarios
Scenario 1: Industrial and Commercial Buildings in Harsh Climates
- Typical Projects: Factories, warehouses located in severely cold regions like Northern Europe, Canada, Russia; or logistics centers, shopping malls in hot regions like the Middle East, Australia.
- Needs Analysis: These projects face extreme external temperature challenges. The building envelope must provide extremely high insulation performance to maintain suitable indoor temperatures and control massive energy consumption. 100mm PIR panels are a cost-effective choice to meet the strict building energy codes (e.g., the EU’s EPBD directive) in such regions.
- ZHUOZHU Solution: We provide coating systems (e.g., HDP or PVDF) suitable for harsh climates, ensuring panels maintain excellent weather resistance even under extreme UV exposure or low temperatures.
Scenario 2: Medium/Low-Temperature Cold Chain Logistics Facilities (Cold Storage)
- Typical Projects: Walls and roofs of freezer warehouses (-18°C to -25°C), refrigerated warehouses (0°C to 4°C).
- Needs Analysis: The significant temperature difference between inside and outside a cold store imposes high demands on the thickness and performance of insulation materials to prevent energy loss, ensure temperature stability, and control operating costs. 100mm thickness is often the entry-level or standard configuration for cold room panels used in freezer warehouses. Their exceptional insulation performance directly impacts the selection of refrigeration equipment and electricity costs.
- ZHUOZHU Solution: As a professional cold room panel manufacturer, our 100mm PIR panels use food-compliant metal facings and specialized cold bridge prevention standing seam systems, ensuring tight joints and meeting dual standards of hygiene and efficient insulation.
Scenario 3: Buildings with Stringent Requirements for Indoor Acoustics and Thermal Comfort
- Typical Projects: High-end office buildings, hotels, hospitals, schools, recording studios, laboratories.
- Needs Analysis: These buildings require not only excellent insulation for low energy consumption but also have high standards for indoor quietness and comfort. The superior insulation and soundproofing provided by 100mm PIR panels can effectively block external noise (e.g., traffic, industrial noise) and temperature fluctuations, creating a stable, quiet indoor environment, enhancing building quality and value.
- ZHUOZHU Solution: We can provide 25mm decorative insulated panels with various finishes (e.g., metal carved panels with stone or wood grain effects), achieving architectural aesthetic expression while meeting high performance.
Scenario 4: Long-Span Buildings and Special Structural Roofs
- Typical Projects:Aircraft hangars, large stadiums, exhibition halls, logistics transfer centers.
- Needs Analysis: Long-span roofs require panels with higher inherent structural stiffness to reduce purlin support density and create more open, column-free space. The 100mm thickness significantly increases the panel’s section modulus, enabling it to bear greater loads and spans. Simultaneously, its efficient insulation is crucial for such large-volume buildings with significant energy control challenges.
- ZHUOZHU Solution: We can provide 100mm PIR roof panels in custom lengths, matched with high-strength concealed fixing systems, ensuring structural safety and overall aesthetics under high wind pressure.
Scenario 5: Deep Energy Retrofit of Existing Buildings
- Typical Projects: Energy efficiency upgrades to the envelope of office buildings, factories constructed in the last century.
- Needs Analysis: Adding an insulation layer to the exterior of existing building walls or roofs is a key measure to improve energy efficiency. When the retrofit goal is to achieve higher energy standards (e.g., nearly zero-energy buildings), 100mm PIR panels can provide extremely high thermal resistance with a relatively reasonable thickness, serving as a powerful tool for deep energy retrofits, and their lightweight nature adds limited load to the original structure.
- ZHUOZHU Solution: We provide dry-fix or mounting systems suitable for retrofit projects, enabling 100mm PIR panels to be quickly and safely applied to various existing building surfaces, achieving significant energy efficiency improvements.
Decision Checklist: Assess if Your Project Needs 100mm PIR Panels
If your project meets at least two of the following characteristics, strongly consider using 100mm PIR sandwich panels:
- The project location has a very high Heating Degree Days (HDD) or Cooling Degree Days (CDD).
- The building interior needs to maintain stable low temperatures (below 0°C) or strict temperature/humidity ranges.
- Local building energy codes require extremely high minimum thermal resistance (R-value) for walls/roofs.
- The building use has clear high standards for indoor noise control.
- The roof design span exceeds conventional standards, requiring panels with higher structural performance.
- The project is targeting high-level green building certification (e.g., LEED, BREEAM), requiring optimal envelope performance.
ZHUOZHU’s Value: Beyond Products
Choosing ZHUOZHU‘s 100mm PIR sandwich panels means you gain comprehensive support from a top-tier factory in China:
- Performance Verification: We provide third-party test data based on international standards (e.g., EN 14509), ensuring transparent and credible product performance.
- System Compatibility:Provide specialized connectors, sealing solutions, and guidelines for thermal bridge detail matching the thick panels.
- Global Supply: As an experienced exporter, we guarantee stable supply and timely delivery of large-volume, high-quality products, no matter where your project is located globally.
