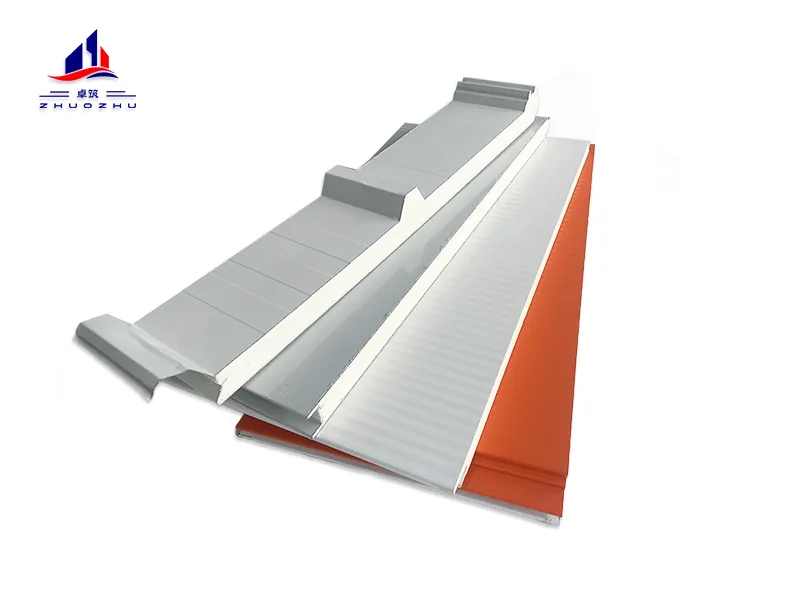

Introduction to Advanced PUF Panel Technology

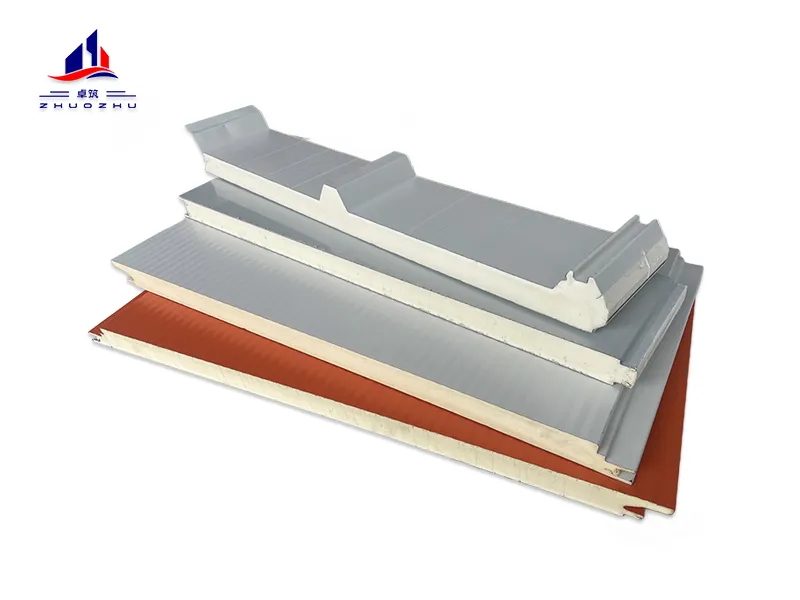

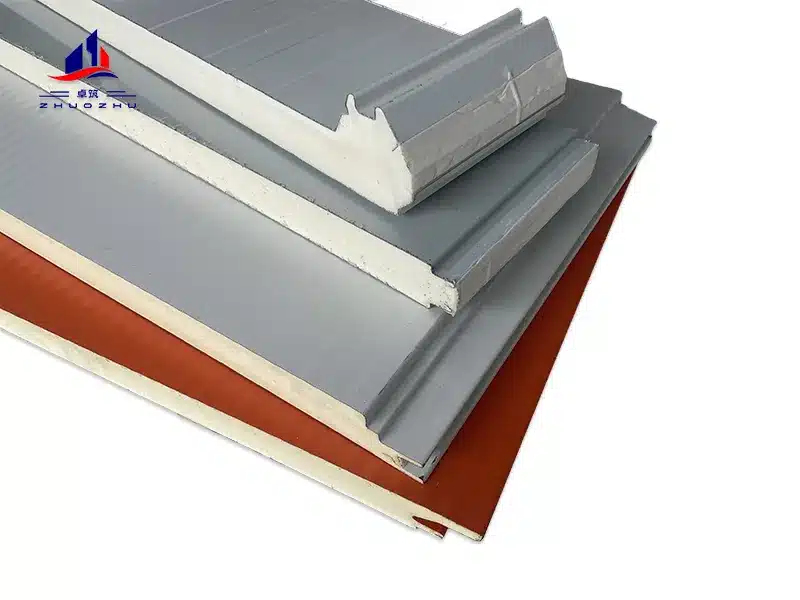

In the evolving landscape of modern construction materials, Sandwich PUF Panels have emerged as a game-changing solution. Also known as Polyurethane Foam Insulated Sandwich Panels, these innovative composite materials feature a rigid PUR/PIR insulation core permanently bonded between two metal facings, creating an exceptional building system that delivers superior thermal efficiency, structural strength, and rapid installation capabilities. As an experienced Chinese manufacturer and global exporter, we have perfected the production of high-quality PUF wall and roof sheets that cater to diverse international standards and project requirements.
Technical Excellence in Composition
Advanced Core Material – Polyurethane Foam (PUF)
- Optimized Density: 38-45 kg/m³ for balanced performance
- Exceptional Thermal Conductivity: 0.022-0.024 W/m·K, surpassing traditional insulation materials
- Superior Closed-cell Structure: ≥92% for maximum moisture resistance
- Enhanced Compressive Strength: 150-200 kPa, ideal for structural requirements
- Excellent Fire Performance: Class B1/B2 rating (self-extinguishing)

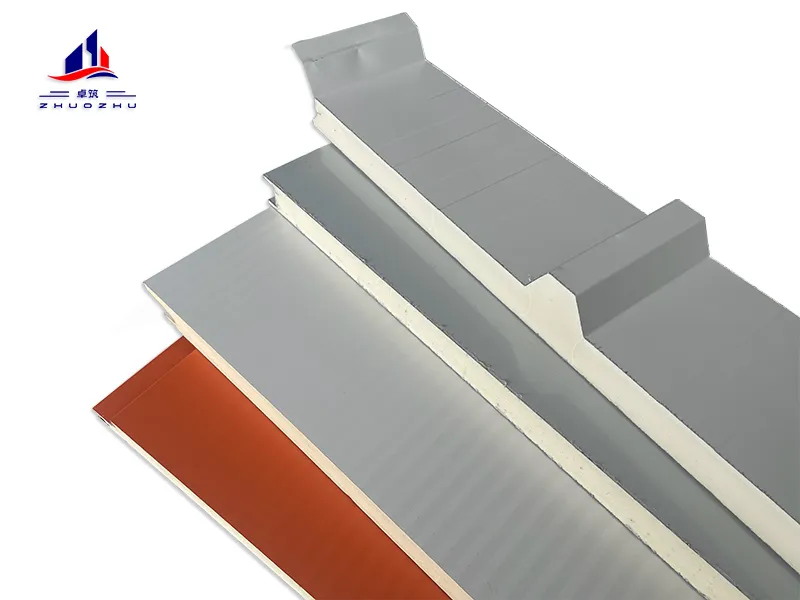

Premium Metal Facings & Protective Finishes
- Durable Base Materials: Galvanized Steel, Galvalume, Aluminum
- Multiple Thickness Options: 0.4mm to 1.0mm
- Advanced Surface Coatings: PVDF, HDP, Stone Chip Coating
- Aesthetic Variety: Standard RAL colors + custom matching
- Profile Diversity: Micro-rib, Trapezoidal, Fluted patterns
Surface Materials for Insulated Panels: Performance Analysis in Humid Environments >>
Comprehensive Dimension Range
- Panel Width: 1000mm, 1150mm (customizable)
- Maximum Length: Up to 16 meters
- Available Thickness:
- Roof Panels: 40mm, 50mm, 75mm, 100mm, 150mm
- Wall Panels: 30mm, 40mm, 50mm, 75mm, 100mm
Unmatched Performance Advantages
Superior Thermal Efficiency
- Industry-leading R-value: R-6.5 to R-7.0 per inch
- Continuous Insulation: Complete elimination of thermal bridges
- Significant Energy Savings: 30-50% reduction in HVAC costs
- Effective Condensation Control: Maintains surface temperature above dew point
- Year-round Climate Control: Stable indoor temperatures in all seasons
Exceptional Structural Performance
- Excellent Strength-to-Weight Ratio: 40% lighter than conventional materials
- Impressive Load Capacity:
- Wind Load: Up to 2.5 kPa
- Snow Load: Up to 2.0 kPa
- Long-span Capability: Up to 8 meters without intermediate support
- Proven Impact Resistance: Withstands harsh weather conditions
Long-term Durability & Reliability
- Extended Service Life: 25-30 years with minimal maintenance
- Superior Corrosion Resistance: Special coatings for harsh environments
- Complete Moisture Resistance: Impermeable closed-cell structure
- Excellent UV Stability: Color retention for 15+ years
- Chemical Resistance: Suitable for industrial environments
Versatile Applications & Efficient Installation
Comprehensive Application Range
Industrial Excellence
- Manufacturing facilities and warehouses
- Cold storage and temperature-controlled environments
- Pharmaceutical and clean room applications
- Food processing plants requiring hygiene
Commercial Applications
- Shopping malls and retail centers
- Office buildings and business parks
- Sports complexes and auditoriums
- Hospitals and healthcare facilities
Specialized Uses
- Agricultural buildings and poultry farms
- Villa steel structure implementations
- Cold room panels for specialized storage
- OSB SIPs alternative solutions
Streamlined Installation Benefits
- Rapid Installation: 3-4 times faster than conventional methods
- Lightweight Design: Reduced structural support requirements
- All-weather Installation: Suitable for various conditions
- Minimal Waste: Precision manufacturing reduces on-site waste
- Easy Modifications: Simple to cut and shape on-site
Comparative Performance Analysis
Versus Traditional Construction
- 60% faster project completion
- 40% better thermal performance
- 50% reduction in structural weight
- 30% lower overall project cost
Versus Alternative Insulated Panels
- 25% better R-value than EPS panels
- Superior fire performance compared to EPS insulation
- Higher compressive strength than mineral wool
- Better moisture resistance than all alternatives
Quality Assurance & Global Certifications
Our PUF panels comply with:
- International Standards: ASTM, ISO, EN, BS
- Fire Safety: Class B1 (GB 8624), Class 0 (BS 476)
- Environmental Compliance: RoHS, REACH compliant
- Quality Management: ISO 9001:2015 certified
- Factory Controls: ISO 14001 environmental management
Environmental Sustainability & Energy Efficiency
Enhanced Energy Performance
- Significant reduction in carbon footprint
- Lower operational energy consumption
- Contributes to LEED certification points
- Sustainable building solution
Material Sustainability
- Fully recyclable metal facings
- Zero ODP (Ozone Depletion Potential)
- Low GWP (Global Warming Potential)
- Reduced construction waste
- Long service life reduces replacement frequency
Professional Installation Guidelines

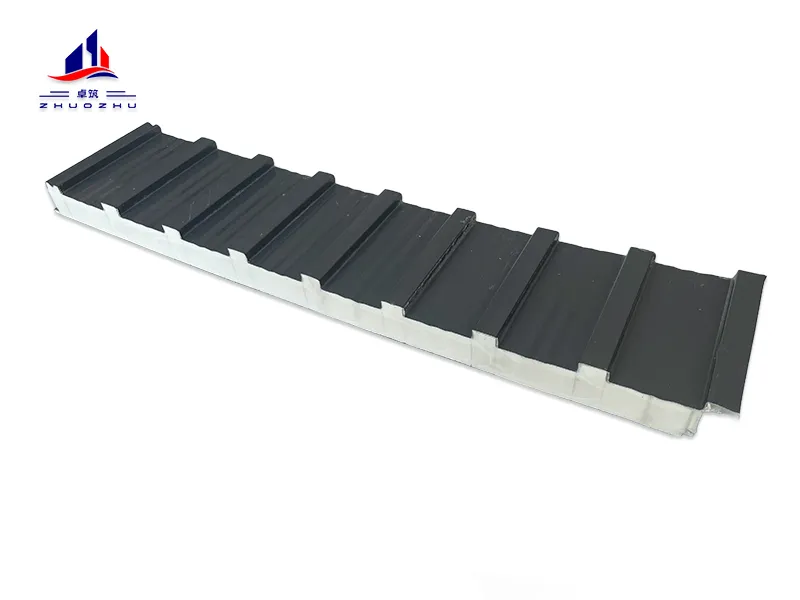

Roof Panel Installation
- Minimum slope: 1:40 (2.5°)
- Recommended fasteners: Self-drilling screws with EPDM washers
- Joint sealing: Compatible silicone sealants
- Expansion joints: As per engineering recommendations
Wall Panel Installation
- Vertical and horizontal applications
- Concealed or exposed fastening systems
- Corner details and special profiles available
- Integration with doors and windows
Comprehensive Maintenance & Care
Routine Maintenance Protocol
- Semi-annual visual inspections
- Regular cleaning with mild detergents
- Immediate repair of any mechanical damage
- Periodic checking of fasteners and seals
Long-term Care Strategy
- Re-sealing of joints every 5-8 years
- Re-coating options available after 15+ years
- Structural inspection after extreme weather events
- Professional assessment every 10 years
Economic Analysis & Cost Benefits
Initial Investment Breakdown
Material Cost: $28-50 per square meterInstallation Cost: $18-30 per square meter- Transportation: Project-specific pricing
Lifecycle Cost Advantages
- Energy savings payback: 2-4 years
- Reduced maintenance costs: 60-70% savings
- Extended service life: 25-30 years
- Higher property resale value
- Lower insurance premiums in some regions
Technical Innovations & Manufacturing Excellence
Advanced Manufacturing Processes
- Continuous automated production lines
- Computer-controlled foam injection
- Precision cutting and profiling
- Automated quality control systems
Cutting-edge Product Innovations
- Integrated photovoltaic panel readiness
- Enhanced fire-resistant formulations
- Improved acoustic performance (up to 30dB)
- Anti-microbial coatings for specific applications
- Smart panel integration capabilities
Why Choose Our PUF Panel Solutions?
Manufacturing Expertise
- 20+ years of specialized experience
- State-of-the-art manufacturing facilities
- Strict quality control at every production stage
- Continuous research and development
Global Project Experience
- Export to 50+ countries worldwide
- Successful completion of 10,000+ projects
- Experience in diverse climate conditions
- Understanding of international building codes
Comprehensive Customer Support
- Free technical consultation services
- Custom design and engineering support
- Comprehensive installation guidance
- Responsive after-sales service
- Project management assistance
Proven Success Stories & Case Studies
Recent Major Projects
- 50,000 sqm Warehouse Complex: Completed in 12 weeks
- Pharmaceutical Clean Room: Maintains ±1°C temperature control
- Shopping Mall Retrofit: 45% reduction in energy consumption
- Cold Storage Facility: Consistent -25°C for 3+ years
Client Testimonials & Feedback
- “40% faster completion than scheduled”
- “Significant reduction in operational costs”
- “Excellent technical support throughout”
- “Superior quality compared to alternatives”
Conclusion: The Future of Building Technology
Sandwich PUF Panels from our advanced manufacturing facilities represent the pinnacle of construction material innovation. Their unmatched combination of thermal performance through continuous insulation, structural integrity, and installation efficiency makes them the ideal choice for modern building projects across all climate zones. By choosing our comprehensive range of PUF roof sheets, you’re investing in a solution that delivers long-term value, sustainability, and performance excellence that aligns with global energy efficiency standards.
Whether you’re building a new facility or retrofitting an existing structure, our PUF panels provide the perfect balance of performance, economy, and durability that today’s construction projects demand, while effectively addressing critical issues like thermal bridge elimination and condensation control.
